![](11_4_hollywood_6.jpg) |
Name: ? Notsouglystick ?
Engines: 2xOS .20 + 1xOS .32
Radio:
Final Weight:
Significant mod's:
- Tri-Motor
- Fully sheeted wing upper surface |
3/23/11:
![](covering_2.jpg)
|
![](covering_1.jpg)
![](Nacelles_4.jpg)
|

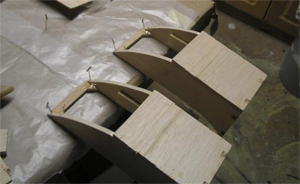

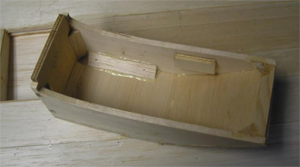

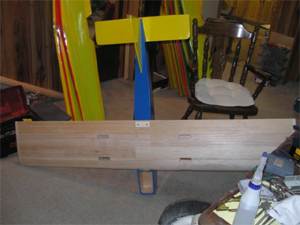

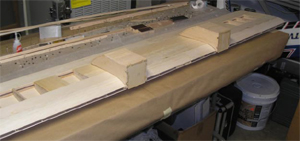

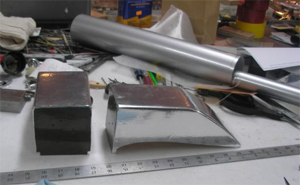

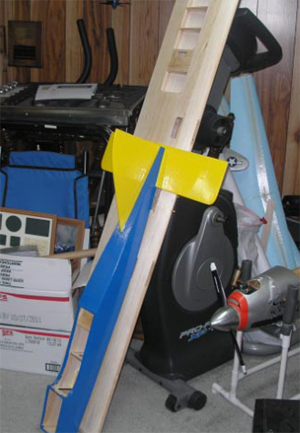

02/08/11: I finally got the wing and naccelles covered. The naccelles are removable in order for working on the tank's or servo's. I'll have two OS -20's And an OS-32 in the nose. The OS-20's where used for combat back when the planes where made of balsa and foam. I'm borrowing the OS-32 from Keith
![](Nacelles_2.jpg)
![](Nacelles_3.jpg)
|
![](Nacelles_1.jpg)

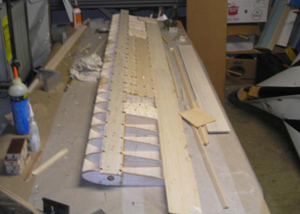

![](Wing%207.jpg)
|
01/29/11: You'll see that things are getting done:

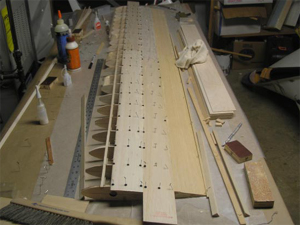

1) I've decided to sheet the whole wing , It's possible with my combat enthusiasm that I may over manuver at times so I thought it would be a good idea.
![](Wing%205.jpg)

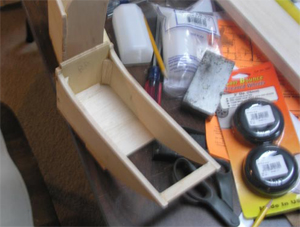

3) The nacelles are coming along also , I'm using the suggestion to make them removable. |
2) I'm using triangle stock for leading edge ,less sanding.

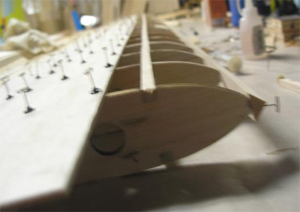

![](Wing%206.jpg)
P.S. Can you tell which ribs are upside down?
(Yeah right, sheet the whole wing so we can't SEE which ribs were upside down! Sneaky sneaky! -
Lightning ) |
![](Nacelle%201.jpg) |
![](Frame%20at%20GS.jpg) |
![](Frame%20at%20GS%202.jpg) |

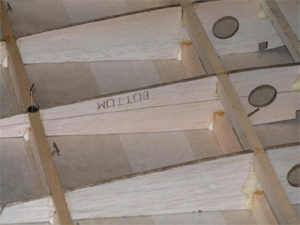

(It has been suggested that his callsign should be changed from Hollywood to Bottoms-up, due to the rib Oops shown below! - Lightning)

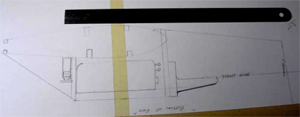

01/24/11: Here's my drawing on
the
nacelles for the 20's. --->
Don (Hollywood) aka Bottoms-up
|
![](Nacelles%20drg.jpg) |
![](Wing%202.jpg) |
![](Table.jpg) |

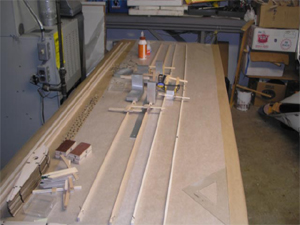

![](Wing%201.jpg) |

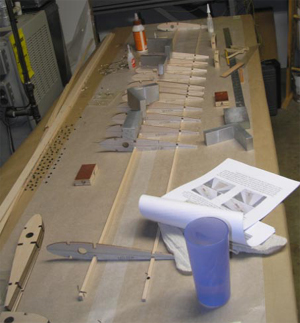

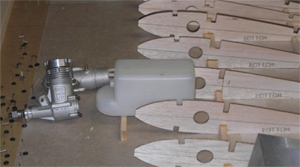

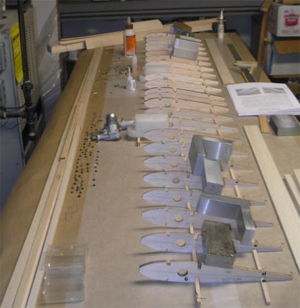

01/19/11: I've decided to try a Tri-motor, two OS-20's and 1 OS-32. In one photo you can see the OS-20 and an 8 oz tank ,I'm just figuring out what to do for a nacelle. By the way I like your (Iceman) concept drawing on this same subject matter and may have to ask for copyrights on it !

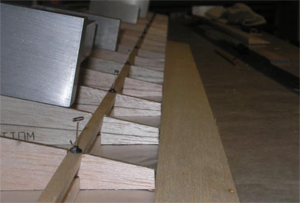

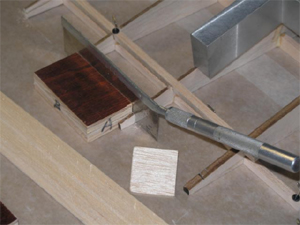

In another photo you'll notice a razor saw and one of the blocks that are used for spacing so as to keep the saw cut 90 degrees to surface and I then installed a 3/8 " x 1.5 " trailing edge stock. This was on the advice of my Cheif Engineer Mr. Jones ( who's second job is as a English teacher) and it saves a lot of sanding. (This is also posted in the Tips page)
Also, there is a photo of a rib that was placed upside down ,actually there are two as my cheif engineer pointed out and I've come up with a solution. Since I can't find the Gremlin that is hiding in my basement I will duplicate the front of the rib and flip it over then glue it to the existing rib after which I will sand to the desired shape so as to continue with construction. Hope this helps others who have the same problem.
|
![](Wing%204.jpg) |
![](Wing%203.jpg)

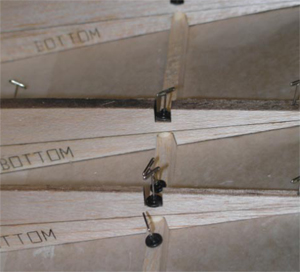

Notice the pin clamp use on the rib's rear spar. I used white gorilla glue and a small amount of ca |
OOPS!! |
![](rib%20cut%20tip%20s.jpg) |
![](rib%20cut%20tip%20ribs.jpg) |
![](Twin%201.jpg) |

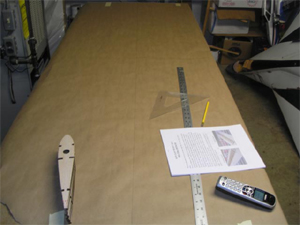

1/15/11 - I didn't know if I had a big enough table to build the wing then Keith and I went into the furnace room and low & behold I already had such a existing table all I did was remove the thousands of parts and the four aircrafts that where on it .I'm preping now so as to start on the wing ( still would like to make a twin ,maybe eletric). I could always add-on at the end of construction ! Don't know what motors to use though. |
![](Mosquistick%201.jpg)

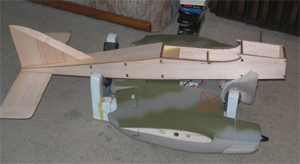

Mosquistick??? |
|
![](Fus%207.jpg) |

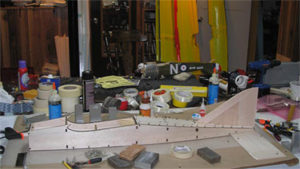

At the base of the pins are plastic round disks. I beleive I got them at the Prop Shop many years ago.
They are good for sheeting although I use them for just about everything. |
![](Fus%206.jpg) |
![](Fus%20firewall.jpg) |

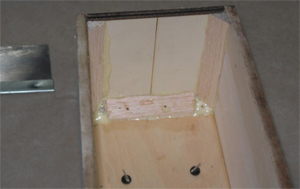

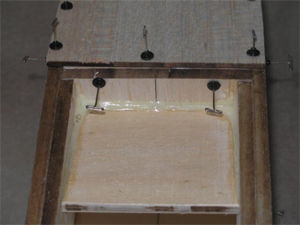

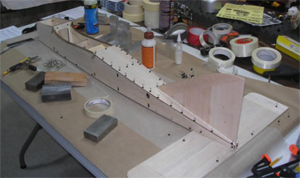

1/13/11: These photos show how the poly-u was used to glue triangle supports on firewall and wing mounting t-nut ply base. If you look carefully in the background there is a electric Sopwith Camel fuselage and fifteen combat wings in varius stages ( 9- covered & 6- ready to cover). These are secret photos not yet released to the pulic for security reasons. (they are now......!)
|
![](Fus%20wing%20plate.jpg) |
![](Fus%201.jpg)
|
![](Fus%202.jpg) |
|

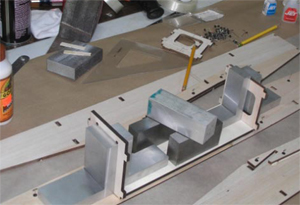

![](Fus%203.jpg)
|
![](Fus%204.jpg)
|
![](Fus%205.jpg) |

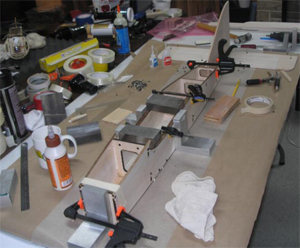

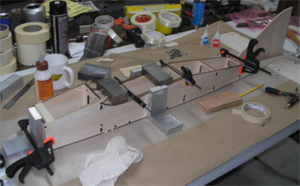

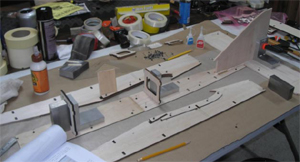

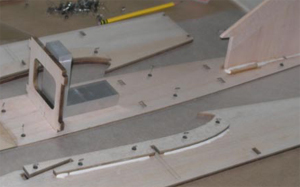

1/10/11
I
was having a hard time deciding which glue to use so I'm going to use a combination of C-A ,White Gorilla and P-U. As, I continue, I will try to change Don's Uglystick to Don's Notsouglystick !

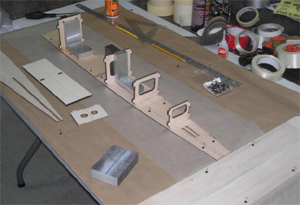

![](Fus%20start.jpg)
|

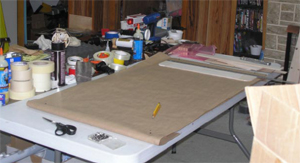

![](Build%20table%20copy.jpg)
|
![](Wood.jpg) |
