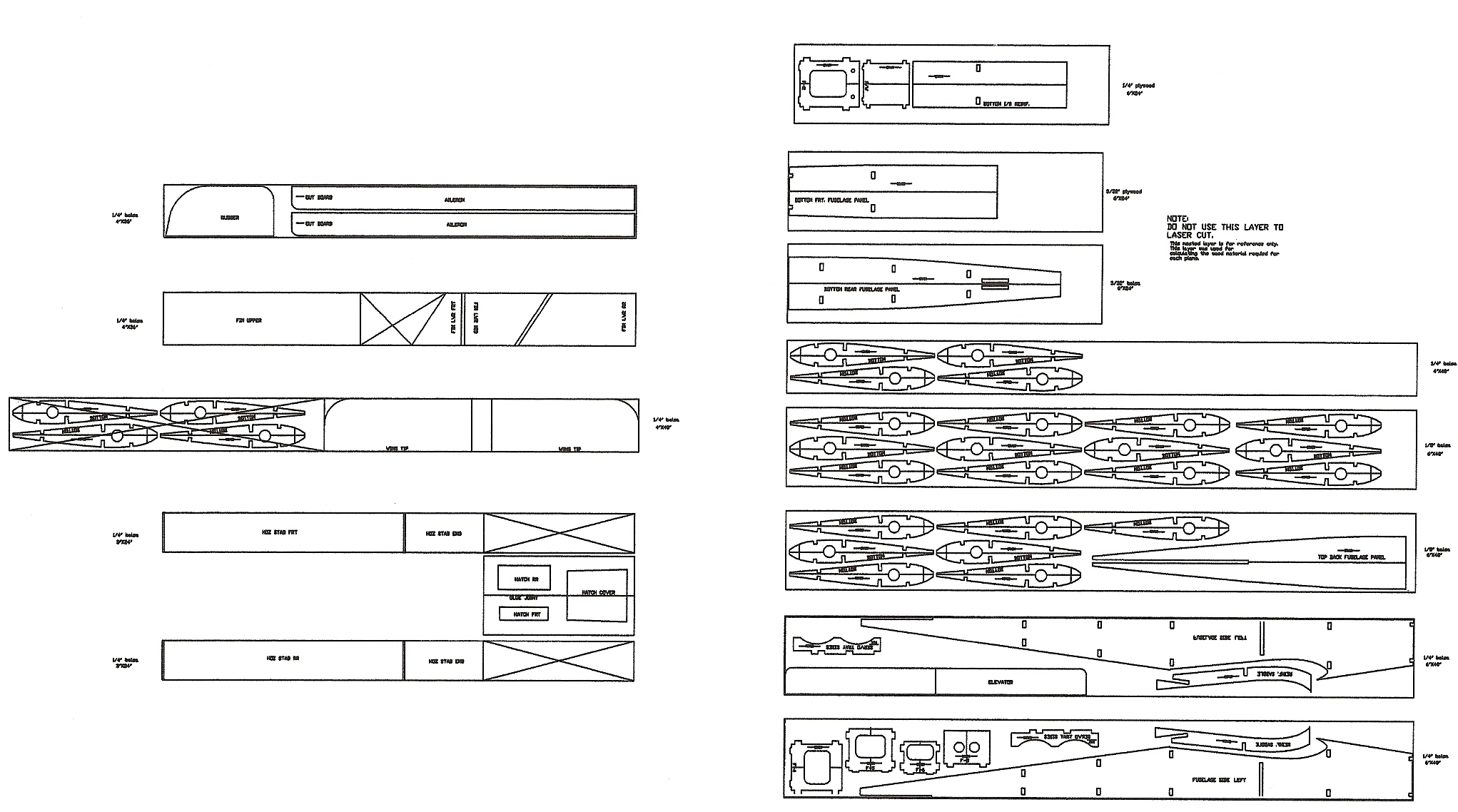

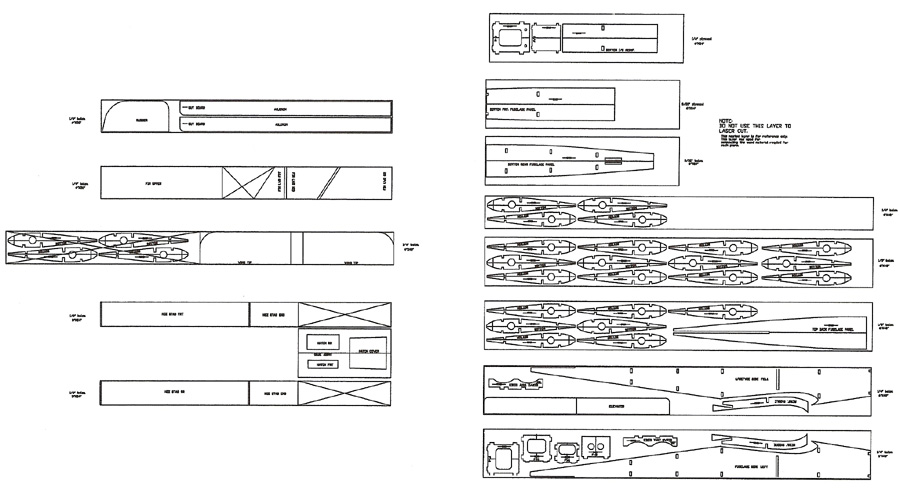

This page contains the wood list, wood lay-outs that will be used, and a suggested hardware list.
|

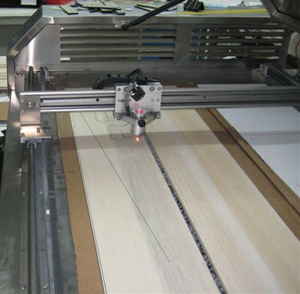

Note: You can either purchase the wood listed from RCCD ($70), or provide your own in the same sizes. Either way, it will be laser cut and shaped for you. |
| |
|
RCCD Ugly Stick Project 2011 |
|
|
| |
|
Wood Material List -- Rev. 12-01-10 |
|
| |
|
|
Wing |
|
|
|
| |
|
|
|
|
|
|
| Description |
part # |
material |
quantity |
|
cost |
total |
| |
|
|
|
|
|
|
| 19 Ribs, top back |
1563 |
1/8x6x48 |
2 |
balsa |
4.03 |
8.06 |
| 2 Tips & 4ribs |
1548 |
1/4x4x48 |
1 |
balsa |
3.16 |
3.16 |
| String spars |
1075 |
1/4x1/4x36 |
8 |
balsa |
0.33 |
2.64 |
| Main spars |
5558 |
1/4x1/2x36 |
5 |
spruce |
1.03 |
5.15 |
| Sheeting |
1132 |
3/32x3x36 |
14 |
balsa |
0.83 |
11.16 |
| Cap strips |
1025 |
3/32x1/4x36 |
5 |
balsa |
0.21 |
1.05 |
| Leading edge |
1077 |
1/4x1/2x36 |
2 |
balsa |
0.44 |
0.88 |
| Trailing edge |
1078 |
1/4x3/4x36 |
2 |
balsa |
0.64 |
1.28 |
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
Fuselage |
|
|
| |
|
|
|
|
|
|
| Bottom rear fuse |
1163 |
3/32x6x24 |
1 |
balsa |
2.11 |
2.11 |
| Fuse sides,former |
1565 |
1/4x6x48 |
2 |
balsa |
5.58 |
11.16 |
| F2,f/w,bot reinforce |
6185 |
1/4x12x24 |
1 |
ply |
5.31 |
5.31 |
| Bottom frt fuse |
6243 |
3/32x12x24 |
1 |
ply |
7.46 |
7.46 |
| Triangle |
1925 |
1/2x1/2x36 |
2 |
balsa |
0.69 |
1.38 |
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
Misc |
|
|
|
| Rudder,Fin,Stab, |
1146 |
1/4x4x36 |
2 |
balsa |
2.49 |
4.98 |
| Ailerons,elevator, |
1135 |
1/4x3x24 |
2 |
balsa |
1.54 |
3.08 |
| hatch |
|
|
|
|
|
|
|

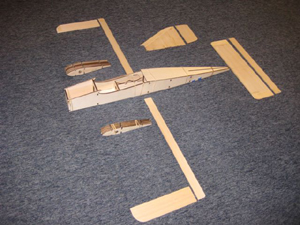

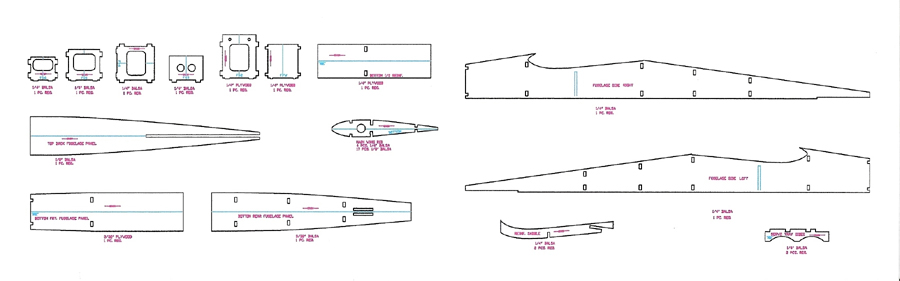

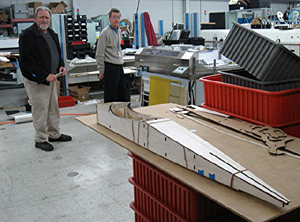

Pre-Cut Components
Ugly Stick Project
Suggested Hardware List for each plane
* 10 or 12 oz fuel tank
* fuel tubing (approx. 2 ft.)
* fuel filler tap (optional)
* motor mount/nose gear mount
* bolts & 'T' nuts for mounting motor mount to firewall
* bolts to mount motor to motor mount
* main landing gear
* bolts, washers, lock washers, to mount main gear to fuse
* axles for main gear
* nose gear or tail wheel gear
* wheels (2 main -3” to 3 1/4” dia. & 1 nose - 2 3/4” dia. or 1” dia. tail wheel)
* wheels collars 6 pcs for wheels
* wheel collars for nose gear shaft--if applicable
* 1/4-20 nylon bolts for wing hold down 2pcs
* 1/4-20 “t” nuts for wing hold down 2 pcs
* large control horns 4 pcs
* 2-56 metal push rods 12” (cut to size) 2 pcs aileron
* 2-56 metal push rods 12” (cut to size) 2 pcs rudder & elev
* 2-56 flex cable type push rods 24” 2 pcs throttle & (steering nose gear)
* 1/4” dia wood dowels for push rods & wing dowels 2 pcs
* quick connectors for 2-56 metal push rods 5 pcs
* CA hinges 17 pcs
* small wood screws for mounting servoes, servo hatch covers approx 50 pcs
* C A glue –Thin & gap filling 1 large bottle each
* covering |
